AEX-TS-RS-BG Temperature and Humidity Transmitter Product Sheet
- Type
- Product Sheet
- Language
- English / EN
- Format
AEX Branded Products
Temperature and Humidity Transmitter

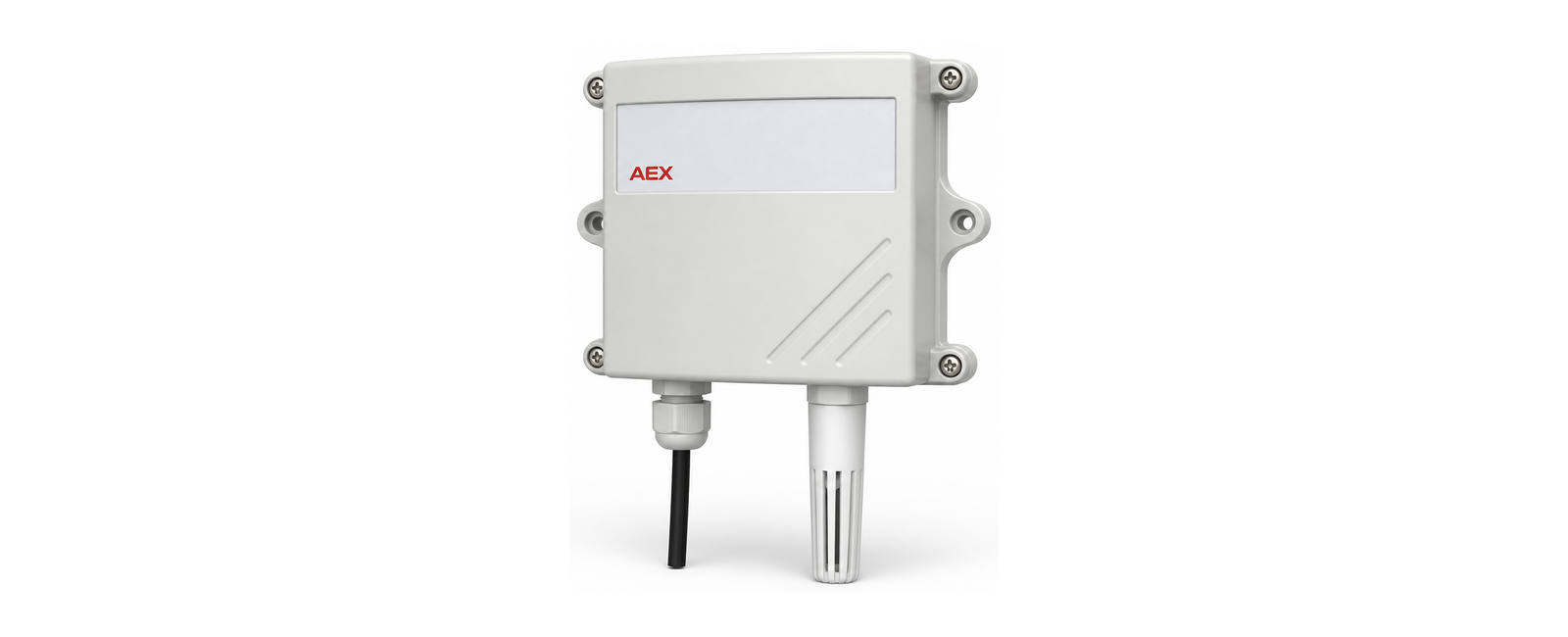

AEX-TS-RS-BG
For continuous monitoring of ambient temperature and relative humidity
5-30 VSupply Voltage
1 sData Refresh
RS485, Modbus protocolOutput
IP65Ingress Protection
Product Overview
The AEX-TS-RS-BG collects ambient temperature and relative humidity and transmits readings through an RS485 Modbus interface. Its wall-mounted IP65 enclosure supports indoor industrial environments and sheltered outdoor installations requiring continuous environmental monitoring.
- Temperature and humidity measurement
- RS485 Modbus communication
- IP65 wall-mounted enclosure
- 1 s data refresh
- DC 5-30 V supply
Technical Specifications
- Supply Voltage
- 5-30 V
- Maximum Power
- 0.1 W at 24 VDC
- Humidity Accuracy – Grade A
- ±2% RH at 60% RH, 25 °C
- Temperature Accuracy – Grade A
- ±0.4 °C at 25 °C
- Humidity Accuracy – Grade B
- ±3% RH at 60% RH, 25 °C
- Temperature Accuracy – Grade B
- ±0.5 °C at 25 °C
- Transmitter Environment
- -40 to +60 °C; 0-95% RH, non-condensing
- Probe Temperature Range
- -40 to +120 °C; default -40 to +80 °C
- Probe Humidity Range
- 0-100% RH
- Temperature Resolution
- 0.1 °C
- Humidity Resolution
- 0.1 % RH
- Data Refresh
- 1 s
- Long-term Stability
- Humidity ≤1% RH/year; temperature ≤0.1 °C/year
- Response Time
- Humidity ≤8 s; temperature ≤25 s at 1 m/s airflow
- Output
- RS485, Modbus protocol
- Ingress Protection
- IP65
- Installation
- Wall-mounted
Typical Applications
- Environmental monitoring
- Control cabinets
- Industrial rooms
- Sheltered outdoor installations
