Industrial Sensors

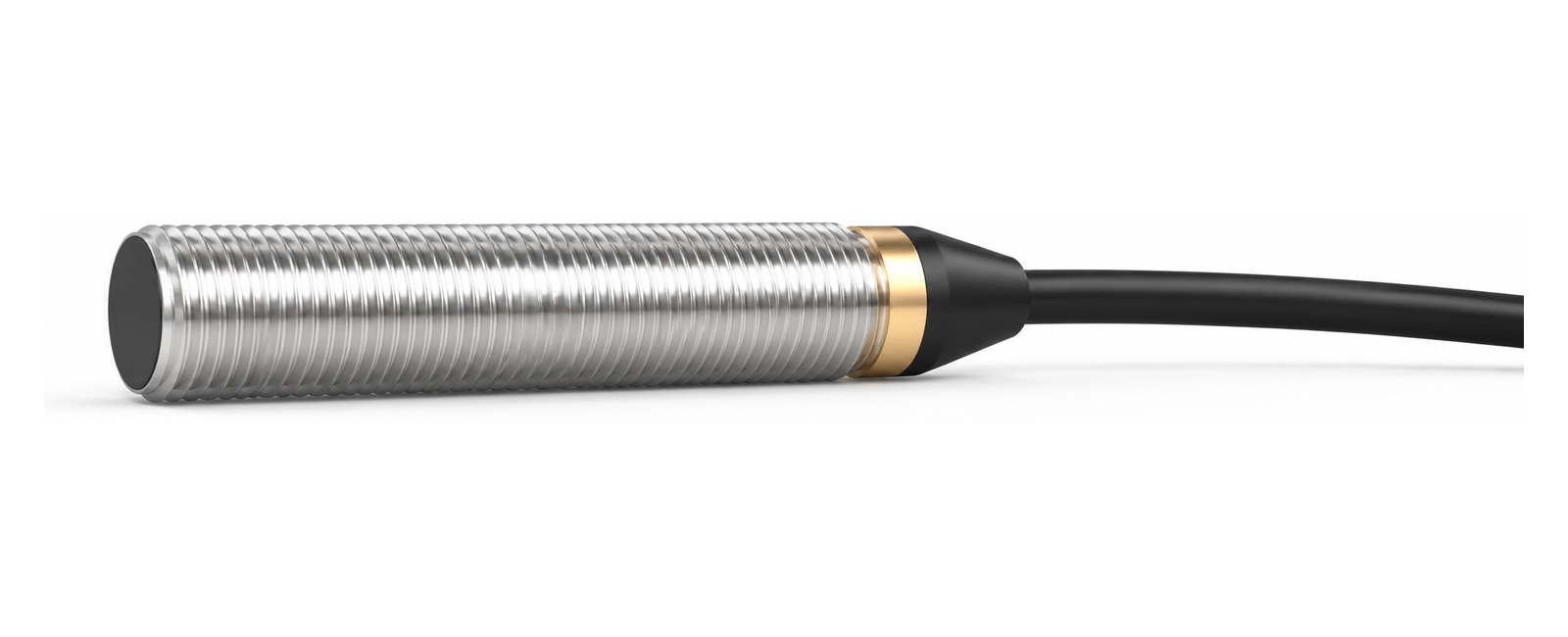

M12 Inductive Proximity Sensor
AKTEK-Q4UDGM12-PNP
Compact M12 inductive sensor for non-contact metal detection.
4mm rated sensing distance
1000Hz switching frequency
IP68/ IP69K protection
-40to +85 °C operation
Product Overview
Industrial Application Product Information
The AKTEK-Q4UDGM12-PNP detects metal targets without physical contact using the electromagnetic eddy-current principle. Its M12 stainless-steel housing supports position confirmation, workpiece detection, and speed-counting applications.
- 4 mm rated sensing distance
- 1000 Hz switching frequency
- IP68 / IP69K protection
- -40 to +85 °C operation
- Stainless-steel M12 housing
- PNP open-collector output
Typical Applications
Industrial Application Reference
- Position Confirmation
- Workpiece Detection
- Cylinder Position
- Rotational Speed Counting
Downloads
Product Sheet
PDF · PRD-SEN-0005
